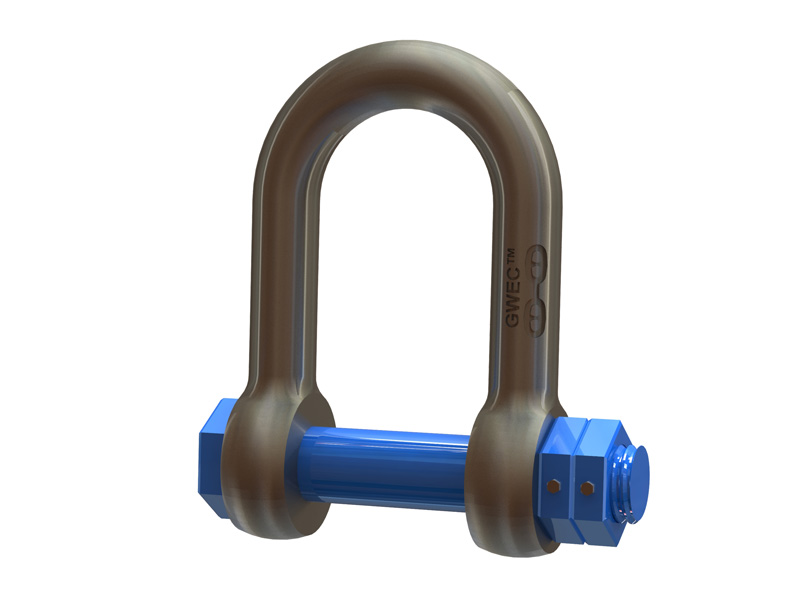

HD Rope Shackle
STDR-3030
HD Rope Shackle |
|
|---|---|
| Product Codes | STDR-3030 |
| Mat. Grade | R4 |
| Range | 200MT & 250MT |
| Standard | OCIMF Guidelines for Offshore Tanker Operations, MESC 53.05.91 & Non-Standard |
| Class | IACS W22 |
| Certification | Full Classification or Test Report |

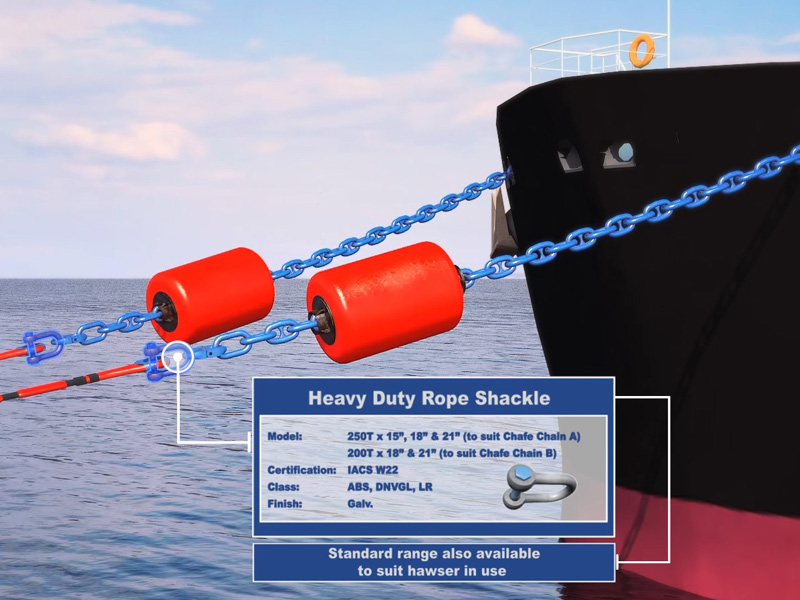

| Detail | For use in F(P)SO & SPM. Intended to connect a Chafe Chain or Mooring Bridle to a Mooring Hawser. Specially designed to suit Chafe Chain A or B configurations c/w 15”, 18” or 21” circ. rope. Alternatively, a standard range is available for all hawser sizes in use. Bespoke arrangements also available, including Thimble Roll Connector, subject to design approval. |
